Introduction

There are several types of switch chips on Routerboards and they have a different set of features. Most of them (from now on "Other") have only basic "Port Switching" feature, but there are few with more features:

FeatureQCA8337Atheros8327Atheros8316Atheros8227Atheros7240ICPlus175DMT7621RTL836798PX1012Other
Port Switchingyesyesyesyesyesyesyesyesnoyes
Port Mirroringyesyesyesyesyesyesyesyesnono
TX limit 1yesyesyesyesyesnonononono
RX limit 1yesyesnononononononono
Host table2048 entries2048 entries2048 entries1024 entries2048 entries

2048 entries 2

2048 entries2048 entriesnono
Vlan table4096 entries4096 entries4096 entries4096 entries16 entriesnonononono
Rule table92 rules92 rules32 rulesnonononononono

Notes

  1. Tx/Rx rate limits can be changed with bandwidth property on "/interface ethernet" menu, see more details in the Ethernet manual.
  2. MAC addresses are learned up to the specified number, but the content of a switch host table is not available in RouterOS and static host configuration is not supported.

Cloud Router Switch (CRS) series devices have highly advanced switch chips built-in, they support a wide variety of features. For more details about switch chip capabilities on CRS1xx/CRS2xx series devices check the CRS1xx/CRS2xx series switches manual, for CRS3xx series devices check the CRS3xx series switches manual.

RouterBoardSwitch-chip description
RB4011iGS+RTL8367 (ether1-ether5); RTL8367 (ether6-ether10);
RB1100AHx4RTL8367 (ether1-ether5); RTL8367 (ether6-ether10); RTL8367 (ether11-ether13)
RB750Gr3 (hEX), RB760iGS (hEX S)MT7621 (ether1-ether5)
RBM33GMT7621 (ether1-ether3)
RB3011 seriesQCA8337 (ether1-ether5); QCA8337 (ether6-ether10)
RB OmniTik ac seriesQCA8337 (ether1-ether5)
RBwsAP-5Hac2nD (wsAP ac lite)Atheros8227 (ether1-ether3)
RB941-2nD (hAP lite)Atheros8227 (ether1-ether4)
RB951Ui-2nD (hAP); RB952Ui-5ac2nD (hAP ac lite); RB750r2 (hEX lite); RB750UPr2 (hEX PoE lite); RB750P-PBr2 (PowerBox); RB750P r2; RBOmniTikU-5HnDr2 (OmniTIK 5); RBOmniTikUPA-5HnDr2 (OmniTIK 5 PoE)Atheros8227 (ether1-ether5)
RB750Gr2 (hEX); RB962UiGS-5HacT2HnT (hAP ac); RB960PGS (hEX PoE); RB960PGS-PB (PowerBox Pro)QCA8337 (ether1-ether5)
RB953GSAtheros8327 (ether1-ether3+sfp1)
RB850Gx2Atheros8327 (ether1-ether5) with ether1 optional [more]
RB2011 seriesAtheros8327 (ether1-ether5+sfp1); Atheros8227 (ether6-ether10)
RB750GL; RB751G-2HnD; RB951G-2HnD; RBD52G-5HacD2HnD (hAP ac²), RBD53iG-5HacD2HnD (hAP ac³), RBD53GR-5HacD2HnD&R11e-LTE6 (hAP ac³ LTE6 kit), RBD53G-5HacD2HnD-TC&EG12-EA (Chateau LTE12)
Atheros8327 (ether1-ether5)
RBcAPGi-5acD2nD (cAP ac), RBwAPGR-5HacD2HnD (wAP R ac and wAP ac LTE series), RBwAPG-5HacD2HnD (wAP ac), RBD25G-5HPacQD2HPnD (Audience), RBD25GR-5HPacQD2HPnD&R11e-LTE6 (Audience LTE6 kit),
Atheros8327 (ether1-ether2)
RBD22UGS-5HPacD2HnD (mANTBox 52 15s)Atheros8327 (ether1-sfp1)
RB1100AHAtheros8327 (ether1-ether5); Atheros8327 (ether6-ether10)
RB1100AHx2Atheros8327 (ether1-ether5); Atheros8327 (ether6-ether10)
CCR1009-8G-1S-1S+; CCR1009-8G-1SAtheros8327 (ether1-ether4)
RB493GAtheros8316 (ether1+ether6-ether9); Atheros8316 (ether2-ether5)
RB435GAtheros8316 (ether1-ether3) with ether1 optional [more]
RB450GAtheros8316 (ether1-ether5) with ether1 optional [more]
RB450Gx4Atheros8327 (ether1-ether5)
RB433GLAtheros8327 (ether1-ether3)
RB750GAtheros8316 (ether1-ether5)
RB1200Atheros8316 (ether1-ether5)
RB1100Atheros8316 (ether1-ether5); Atheros8316 (ether6-ether10)
DISC Lite5Atheros8227 (ether1)
RBmAP2nDAtheros8227 (ether1-ether2)
RBmAP2nAtheros7240 (ether1-ether2)
RB750Atheros7240 (ether2-ether5)
RB750UPAtheros7240 (ether2-ether5)
RB751U-2HnDAtheros7240 (ether2-ether5)
RB951-2nAtheros7240 (ether2-ether5)
RB951Ui-2HnDAtheros8227 (ether1-ether5)
RB433 seriesICPlus175D (ether2-ether3); older models had ICPlus175C
RB450ICPlus175D (ether2-ether5); older models had ICPlus175C
RB493 seriesICPlus178C (ether2-ether9)
RB816ICPlus178C (ether1-ether16)

The command-line configuration is under the switch menu. This menu contains a list of all switch chips present in the system and some sub-menus as well.

[admin@MikroTik] > /interface ethernet switch print
Flags: I - invalid
 #   NAME         TYPE             MIRROR-SOURCE       MIRROR-TARGET       SWITCH-ALL-PORTS
 0   switch1      Atheros-8327     none                none
 1   switch2      Atheros-8227     none                none

Depending on switch type there might be available or not available some configuration capabilities.

Features

Port Switching

In order to setup port switching on non-CRS series devices, check the Bridge Hardware Offloading page.

Port switching in RouterOS v6.41 and newer is done using the bridge configuration. Prior to RouterOS v6.41 port switching was done using the master-port property, for more details check the Master-port page.

Switch All Ports Feature

Ether1 port on RB450G/RB435G/RB850Gx2 devices have a feature that allows it to be removed/added to the default switch group, this setting is available on the /interface ethernet switch menu. By default ether1 port will be included in the switch group.

PropertyDescription
switch-all-ports (no | yes; Default: yes)

Changes ether1 switch group only on RB450G/RB435G/RB850Gx2 devices.

  • yes - ether1 is part of the switch and supports switch grouping and all other advanced Atheros8316/Atheros8327 features including extended statistics (/interface ethernet print stats).
  • no - ether1 is not part of the switch, effectively making it as stand-alone ethernet port, this way increasing its throughput to other ports in bridged and routed mode, but removing the switching possibility on this port.

Port Mirroring

Port mirroring lets the switch to copy all traffic that is going in and out of one port (mirror-source) and send out these copied frames to some other port (mirror-target). This feature can be used to easily set up a 'tap' device that receives all traffic that goes in/out of some specific port. Note that mirror-source and mirror-target ports have to belong to the same switch (see which port belongs to which switch in /interface ethernet menu). Also, mirror-target can have a special 'cpu' value, which means that 'sniffed' packets should be sent out to the switch chips CPU port. Port mirroring happens independently of switching groups that have or have not been set up.

Port mirroring configuration example:

/interface ethernet switch
set switch1 mirror-source=ether2 mirror-target=ether3

 If you set mirror-source as an Ethernet port for a device with at least two switch chips and these mirror-source ports are in a single bridge while mirror-target for both switch chips are set to send the packets to the CPU, then this will result in a loop, which can make your device inaccessible.

Port Settings

Properties under this menu are used to configure VLAN switching and filtering options for switch chips that support a VLAN Table. These properties are only available to switch chips that have VLAN Table support, check the Switch Chip Features table to make sure your device supports such a feature.

Ingress traffic is considered as traffic that is being sent IN a certain port, this port is sometimes called ingress port. Egress traffic is considered as traffic that is being sent OUT of a certain port, this port is sometimes called egress port. Distinguishing them is very important in order to properly set up VLAN filtering since some properties apply only to either ingress or egress traffic.

PropertyDescription
vlan-mode (check | disabled | fallback | secure; Default: disabled)Changes the VLAN lookup mechanism against the VLAN Table for ingress traffic.
  • disabled - disables checking against the VLAN Table completely for ingress traffic. No traffic is dropped when set on ingress port.
  • fallback - checks tagged traffic against the VLAN Table for ingress traffic, forwards all untagged traffic. If ingress traffic is tagged and egress port is not found in the VLAN table for the appropriate VLAN ID, then traffic is dropped. If a VLAN ID is not found in the VLAN Table, then traffic is forwarded. Used to allow known VLANs only in specific ports.
  • check - checks tagged traffic against the VLAN Table for ingress traffic, drops all untagged traffic. If ingress traffic is tagged and egress port is not found in the VLAN table for the appropriate VLAN ID, then traffic is dropped.
  • secure - checks tagged traffic against the VLAN Table for ingress traffic, drops all untagged traffic. Both ingress and egress port must be found in the VLAN Table for the appropriate VLAN ID, otherwise traffic is dropped.
vlan-header (add-if-missing | always-strip | leave-as-is; Default: leave-as-is)Sets action which is performed on the port for egress traffic.
  • add-if-missing - adds a VLAN tag on egress traffic and uses default-vlan-id from the ingress port. Should be used for trunk ports.
  • always-strip - removes a VLAN tag on egress traffic. Should be used for access ports.
  • leave-as-is - does not add nor removes a VLAN tag on egress traffic. Should be used for hybrid ports.
default-vlan-id (auto | integer: 0..4095; Default: auto)Adds a VLAN tag with the specified VLAN ID on all untagged ingress traffic on a port, should be used with vlan-header set to always-strip on a port to configure the port to be the access port. For hybrid ports default-vlan-id is used to tag untagged traffic. If two ports have the same default-vlan-id, then VLAN tag is not added since the switch chip assumes that traffic is being forwarded between access ports.

On QCA8337 and Atheros8327 switch chips, a default vlan-header=leave-as-is property should be used. The switch chip will determine which ports are access ports by using the default-vlan-id property. The default-vlan-id should only be used on access/hybrid ports to specify which VLAN the untagged ingress traffic is assigned to.

VLAN Table

VLAN table specifies certain forwarding rules for packets that have a specific 802.1Q tag. Those rules are of higher priority than switch groups configured using the Bridge Hardware Offloading feature. Basically the table contains entries that map specific VLAN tag IDs to a group of one or more ports. Packets with VLAN tags leave switch chip through one or more ports that are set in the corresponding table entry. The exact logic that controls how packets with VLAN tags are treated is controlled by a vlan-mode parameter that is changeable per switch port.

VLAN ID based forwarding takes into account the MAC addresses dynamically learned or manually added in the host table. QCA8337 and Atheros8327 switch-chips also support Independent VLAN Learning (IVL) which does the learning based on both - MAC addresses and VLAN IDs, thus allowing the same MAC to be used in multiple VLANs.

Packets without VLAN tag are treated just like if they had a VLAN tag with port default-vlan-id. If vlan-mode=check or vlan=mode=secure is configured, in order to forward packets without VLAN tags you have to add an entry to the VLAN table with the same VLAN ID according to default-vlan-id.

PropertyDescription
disabled (no | yes; Default: no)Enables or disables switch VLAN entry.
independent-learning (no | yes; Default: yes)Whether to use shared-VLAN-learning (SVL) or independent-VLAN-learning (IVL).
ports (name; Default: none)Interface member list for the respective VLAN. This setting accepts comma-separated values. e.g. ports=ether1,ether2.
switch (name; Default: none)Name of the switch to which the respective VLAN entry is intended for.
vlan-id (integer: 0..4095; Default: )The VLAN ID for certain switch port configuration.

VLAN Forwarding

Both vlan-mode and vlan-header along with the VLAN Table can be used to configure VLAN tagging, untagging and filtering, there are multiple combinations that are possible, each achieving a different result. Below you can find a table of what kind of traffic is going to be sent out through an egress port when a certain traffic is received on an ingress port for each VLAN Mode.

NOTES:

  • L - vlan-header is set to leave-as-is
  • S - vlan-header set to always-strip
  • A - vlan-header set to add-if-missing
  • U - Untagged traffic is sent out
  • T - Tagged traffic is sent out, a tag is already present on the ingress port
  • TA - Tagged traffic is sent out, a tag was added on the ingress port
  • DI - Traffic is dropped on ingress port because of mode selected in vlan-mode
  • DE - Traffic is dropped on egress port because egress port was not found in the VLAN Table
  • VID match - VLAN ID from the VLAN tag for ingress traffic is present in the VLAN Table
  • Port match - Ingress port is present in the VLAN Table for the appropriate VLAN ID
VLAN Mode = disabledEgress port not present in VLAN TableEgress port is present in VLAN Table
LSALSA
Untagged trafficUUTAUUTA
Tagged traffic; no VID matchTUT
Tagged traffic; VID match; no Port matchTUTTUT
Tagged traffic; VID match; Port matchTUTTUT
VLAN Mode = fallbackEgress port not present in VLAN TableEgress port is present in VLAN Table
LSALSA
Untagged trafficUUTAUUTA
Tagged traffic; no VID matchTUT
Tagged traffic; VID match; no Port matchDEDEDETUT
Tagged traffic; VID match; Port matchDEDEDETUT
VLAN Mode = checkEgress port not present in VLAN TableEgress port is present in VLAN Table
LSALSA
Untagged traffic
Tagged traffic; no VID matchDIDIDI
Tagged traffic; VID match; no Port matchDEDEDETUT
Tagged traffic; VID match; Port matchDEDEDETUT
VLAN Mode = secureEgress port not present in VLAN TableEgress port is present in VLAN Table
LSALSA
Untagged traffic
Tagged traffic; no VID matchDIDIDI
Tagged traffic; VID match; no Port matchDIDIDIDIDIDI
Tagged traffic; VID match; Port matchDEDEDETUT


The tables above are meant for more advanced configurations and to double check your own understanding of how packets will be processed with each VLAN related property.

Host Table

The host table represents switch chip's internal MAC address to port mapping. It can contain two kinds of entries: dynamic and static. Dynamic entries get added automatically, this is also called a learning process: when switch chip receives a packet from a certain port, it adds the packet's source MAC address and port it received the packet from to the host table, so when a packet comes in with the same destination MAC address, it knows to which port it should forward the packet. If the destination MAC address is not present in the host table (so-called unknown-unicast traffic) then it forwards the packet to all ports in the group. Dynamic entries take about 5 minutes to time out. Learning is enabled only on ports that are configured as part of the switch group, so you won't see dynamic entries if you have not set up port switching. Also, you can add static entries that take over dynamic if a dynamic entry with the same MAC address already exists. Since port switching is configured using a bridge with hardware offloading, any static entries created on one table (either bridge host or switch host) will appear on the opposite table as a dynamic entry. Adding a static entry on the switch host table will provide access to some more functionality that is controlled via the following params:

PropertyDescription
copy-to-cpu (no | yes; Default: no)Whether to send a frame copy to switch CPU port from a frame with matching MAC destination address
drop (no | yes; Default: no)Whether to drop a frame with matching MAC source address received on a certain port
mac-address (MAC; Default: 00:00:00:00:00:00)Host's MAC address
mirror (no | yes; Default: no)Whether to send a frame copy to mirror-target port from a frame with matching MAC destination address
ports (name; Default: none)Name of the interface, static MAC address can be mapped to more that one port, including switch CPU port
redirect-to-cpu (no | yes; Default: no)Whether to redirect a frame to switch CPU port from a frame with matching MAC destination address
share-vlan-learned (no | yes; Default: no)Whether the static host MAC address lookup is used with shared-VLAN-learning (SVL) or independent-VLAN-learning (IVL). The SVL mode is used for those VLAN entries that do not support IVL or IVL is disabled (independent-learning=no)
switch (name; Default: none)Name of the switch to which the MAC address is going to be assigned to
vlan-id (integer: 0..4095; Default: )VLAN ID for the statically added MAC address entry

Every switch chip has a finite number of MAC addresses it can store on the chip, see the Introduction table for a specific host table size. Once a host table is completely full, different techniques can be utilized to cope with the situation, for example, the switch can remove older entries to free space for more recent MAC addresses (used on QCA-8337 and Atheros-8327 switch chips), another option is to simply ignore the new MAC addresses and only remove entries after a timeout has passed (used on Atheros8316, Atheros8227, Atheros-7240, ICPlus175D and Realtek-RTL8367 switch chips), the last option is a combination of the previous two - only allow a certain amount of entries to be renewed and keep the other host portion intact till the timeout (used on MediaTek-MT7621 switch chip). These techniques cannot be changed with configuration.

For Atheros8316, Atheros8227 and Atheros-7240 switch chips, the switch-cpu port will always participate in the host learning process when at least one hardware offloaded bridge port is active on the switching group. It will cause the switch-cpu port to learn MAC addresses from non-HW offloaded interfaces. This might cause a packet loss when a single bridge contains HW and non-HW offloaded interfaces. Also, packet loss might appear when a duplicate MAC address is used on the same switching group regardless if hosts are located on different logical networks. It is recommended to use HW offloading on all switch ports or keep it disabled on all switch ports.

Rule Table

Rule table is a very powerful tool allowing wire-speed packet filtering, forwarding and VLAN tagging based on L2, L3 and L4 protocol header field condition. The menu contains an ordered list of rules just like in /ip firewall filter, so ACL rules are checked for each packet until a match has been found. If there are multiple rules that can match, then only the first rule will be triggered. A rule without any action parameters is a rule to accept the packet.

Each rule contains a conditions part and an action part. The action part is controlled by the following parameters:

PropertyDescription
copy-to-cpu (no | yes; Default: no)Whether to send a packet copy to switch CPU port
mirror (no | yes; Default: no)Whether to send a packet copy to mirror-target port
new-dst-ports (name; Default: none)Changes the destination port as specified, multiple ports allowed, including a switch CPU port. An empty setting will drop the packet. When the parameter is not used, the packet will be accepted
new-vlan-id (integer: 0..4095)Changes the VLAN ID to the specified value or adds a new VLAN tag if one was not already present (the property only applies to the Atheros8316 switch chip)
new-vlan-priority (integer: 0..7)Changes the VLAN priority field (priority code point)
rate (integer: 0..4294967295)Sets ingress traffic limitation (bits per second) for matched traffic, can only be applied to the first 32 rule slots (the property only applies to Atheros8327/QCA8337 switch chips)
redirect-to-cpu (no | yes; Default: no)Changes the destination port of a matching packet to the switch CPU

Conditions part is controlled by rest of parameters:

PropertyDescription
disabled (no | yes; Default: no)Enables or disables switch rule
dscp (integer: 0..63)Matching DSCP field of the packet
dst-address (IP address/Mask)Matching destination IP address and mask
dst-address6 (IPv6 address/Mask)Matching destination IPv6 address and mask
dst-mac-address (MAC address/Mask)Matching destination MAC address and mask
dst-port (integer: 0..65535)Matching destination protocol port number or range
flow-label (integer: 0..1048575)Matching IPv6 flow label
mac-protocol (802.2 | arp | homeplug-av | ip | ipv6 | ipx | lldp | loop-protect | mpls-multicast | mpls-unicast | packing-compr | packing-simple | pppoe | pppoe-discovery | rarp | service-vlan | vlan | or 0..65535 | or 0x0000-0xffff)Matching particular MAC protocol specified by protocol name or number (skips VLAN tags if any)
ports (name)Name of the interface on which the rule will apply on the received traffic, multiple ports are allowed
protocol (dccp | ddp | egp | encap | etherip | ggp | gre | hmp | icmp | icmpv6 | idpr-cmtp | igmp | ipencap | ipip | ipsec-ah | ipsec-esp | ipv6 | ipv6-frag | ipv6-nonxt | ipv6-opts | ipv6-route | iso-tp4 | l2tp | ospf | pim | pup | rdp | rspf | rsvp | sctp | st | tcp | udp | udp-lite | vmtp | vrrp | xns-idp | xtp | or 0..255)Matching particular IP protocol specified by protocol name or number
src-address (IP address/Mask)Matching source IP address and mask
src-address6 (IPv6 address/Mask)Matching source IPv6 address and mask
src-mac-address (MAC address/Mask)Matching source MAC address and mask
src-port (0..65535)Matching source protocol port number or range
switch (switch group)Matching switch group on which will the rule apply
traffic-class (0..255)Matching IPv6 traffic class
vlan-id (0..4095)Matching VLAN ID (the property only applies to the Atheros8316 switch chip)
vlan-header (not-present | present)Matching VLAN header, whether the VLAN header is present or not (the property only applies to the Atheros8316 switch chip)
vlan-priority (0..7)Matching VLAN priority (priority code point)

IPv4 and IPv6 specific conditions cannot be present in the same rule.

Due to the fact that the rule table is processed entirely in switch chips hardware, there is a limitation to how many rules you may have. Depending on the number of conditions (MAC layer, IP layer, IPv6, L4 layer) you use in your rules, the number of active rules may vary from 8 to 32 for Atheros8316 switch chip and from 24 to 96 for Atheros8327/QCA8337 switch chip. You can always do/interface ethernet switch rule print after modifying your rule set to see that no rules at the end of the list are 'invalid' which means those rules did not fit into the switch chip.

Port isolation

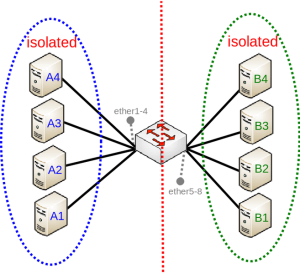

Port isolation provides the possibility to divide (isolate) certain parts of your network, this might be useful when you need to make sure that certain devices cannot access other devices, this can be done by isolating switch ports. Switch port isolation is available on all switch chips since RouterOS v6.43.

PropertyDescription
forwarding-override (interface; Default: )Forces ingress traffic to be forwarded to a specific interface. Multiple interfaces can be specified by separating them with a comma.

(R/M)STP will only work properly in PVLAN setups, (R/M)STP will not work properly in setups, where there are multiple isolated switch groups, because switch groups might not properly receive BPDUs and therefore fail to detect network loops.

The forwarding-override property that has an effect on ingress traffic only. Switch ports that do not have the forwarding-override specified are able to send packets through all switch ports.

Switch chips with a VLAN table support (QCA8337, Atheros8327, Atheros8316, Atheros8227 and Atheros7240) can override the port isolation configuration when enabling a VLAN lookup on the switch port (the vlan-mode is set to fallback, check or secure). If additional port isolation is needed between ports on the same VLAN, a switch rule with a new-dst-ports property can be implemented. Other devices without switch rule support cannot overcome this limitation.

Private VLAN

In some scenarios, you might need to forward all traffic to an uplink port while all other ports are isolated from each other. This kind of setup is called Private VLAN configuration, the Switch will forward all Ethernet frames directly to the uplink port allowing the Router to filter unwanted packets and limit access between devices that are behind switch ports.

To configure switch port isolation, you need to switch all required ports:

/interface bridge
add name=bridge1
/interface bridge port
add interface=sfp1 bridge=bridge1 hw=yes
add interface=ether1 bridge=bridge1 hw=yes
add interface=ether2 bridge=bridge1 hw=yes
add interface=ether3 bridge=bridge1 hw=yes

By default, the bridge interface is configured with protocol-mode set to rstp. For some devices, this can disable hardware offloading because specific switch chips do not support this feature. See the Bridge Hardware Offloading section with supported features.

Override the egress port for each switch port that needs to be isolated (excluding the uplink port):

/interface ethernet switch port-isolation
set ether1 forwarding-override=sfp1
set ether2 forwarding-override=sfp1
set ether3 forwarding-override=sfp1

It is possible to set multiple uplink ports for a single switch chip, this can be done by specifying multiple interfaces and separating them with a comma.

Isolated switch groups

In some scenarios you might need to isolate a group of devices from other groups, this can be done using the switch port isolation feature. This is useful when you have multiple networks but you want to use a single switch, with port isolation you can allow certain switch ports to be able to communicate through only a set of switch ports. In this example devices on ether1-4 will only be able to communicate with devices that are on ether1-4, while devices on ether5-8 will only be able to communicate with devices on ether5-8 (ether1-4 is not able to communicate with ether5-8)


To configure isolated switch groups you must first switch all ports:

/interface bridge
add name=bridge
/interface bridge port
add bridge=bridge1 interface=ether1 hw=yes
add bridge=bridge1 interface=ether2 hw=yes
add bridge=bridge1 interface=ether3 hw=yes
add bridge=bridge1 interface=ether4 hw=yes
add bridge=bridge1 interface=ether5 hw=yes
add bridge=bridge1 interface=ether6 hw=yes
add bridge=bridge1 interface=ether7 hw=yes
add bridge=bridge1 interface=ether8 hw=yes

By default, the bridge interface is configured with protocol-mode set to rstp. For some devices, this can disable hardware offloading because specific switch chips do not support this feature. See the Bridge Hardware Offloading section with supported features.

Then specify in the forwarding-override property all ports that you want to be in the same isolated switch group (except the port on which you are applying the property), for example, to create an isolated switch group for A devices:

/interface ethernet switch port-isolation
set ether1 forwarding-override=ether2,ether3,ether4
set ether2 forwarding-override=ether1,ether3,ether4
set ether3 forwarding-override=ether1,ether2,ether4
set ether4 forwarding-override=ether1,ether2,ether3

To create an isolated switch group for B devices:

/interface ethernet switch port-isolation
set ether5 forwarding-override=ether6,ether7,ether8
set ether6 forwarding-override=ether5,ether7,ether8
set ether7 forwarding-override=ether5,ether6,ether8
set ether8 forwarding-override=ether5,ether6,ether7

CPU Flow Control

All switch chips have a special port that is called switchX-cpu, this is the CPU port for a switch chip, it is meant to forward traffic from a switch chip to the CPU, such a port is required for management traffic and for routing features. By default the switch chip ensures that this special CPU port is not congested and sends out Pause Frames when link capacity is exceeded to make sure the port is not oversaturated, this feature is called CPU Flow Control. Without this feature packets that might be crucial for routing or management purposes might get dropped.

Since RouterOS v6.43 it is possible to disable the CPU Flow Control feature on some devices that are using one of the following switch chips: Atheros8227, QCA8337, Atheros8327, Atheros7240 or Atheros8316. Other switch chips have this feature enabled by default and cannot be changed. To disable CPU Flow Control use the following command:

/interface ethernet switch set switch1 cpu-flow-control=no

Statistics

Some switch chips are capable of reporting statistics, this can be useful to monitor how many packets are sent to the CPU from the built-in switch chip. These statistics can also be used to monitor CPU Flow Control. You can find an example of switch chip's statistics below:

[admin@MikroTik] > /interface ethernet switch print stats

                      name:      switch1
            driver-rx-byte:  221 369 701
          driver-rx-packet:    1 802 975
            driver-tx-byte:   42 621 969
          driver-tx-packet:      310 485
                  rx-bytes:  414 588 529
                 rx-packet:    2 851 236
              rx-too-short:            0
               rx-too-long:            0
              rx-broadcast:    1 040 309
                  rx-pause:            0
              rx-multicast:      486 321
              rx-fcs-error:            0
            rx-align-error:            0
               rx-fragment:            0
                rx-control:            0
             rx-unknown-op:            0
           rx-length-error:            0
             rx-code-error:            0
          rx-carrier-error:            0
                 rx-jabber:            0
                   rx-drop:            0
                  tx-bytes:   44 071 621
                 tx-packet:      312 597
              tx-too-short:            0
               tx-too-long:        8 397
              tx-broadcast:        2 518
                  tx-pause:        2 112
              tx-multicast:        7 142
    tx-excessive-collision:            0
     tx-multiple-collision:            0
       tx-single-collision:            0
     tx-excessive-deferred:            0
               tx-deferred:            0
         tx-late-collision:            0
        tx-total-collision:            0
                   tx-drop:            0
                 tx-jabber:            0
              tx-fcs-error:            0
                tx-control:        2 112
               tx-fragment:            0
                  tx-rx-64:        6 646
              tx-rx-65-127:    1 509 891
             tx-rx-128-255:    1 458 299
             tx-rx-256-511:      178 975
            tx-rx-512-1023:          953
           tx-rx-1024-1518:          672
            tx-rx-1519-max:            0

Some devices have multiple CPU cores that are directly connected to a built-in switch chip using separate data lanes. These devices can report which data lane was used to forward the packet from or to the CPU port from the switch chip. For such devices an extra line is added for each row, the first line represents data that was sent using the first data lane, the second line represents data that was sent using the second data line and so on. You can find an example of switch chip's statistics for a device with multiple data lanes connecting the CPU and the built-in switch chip:

[admin@MikroTik] > /interface ethernet switch print stats
                  name:      switch1
        driver-rx-byte:  226 411 248
                                   0
      driver-rx-packet:    1 854 971
                                   0
        driver-tx-byte:   45 988 067
                                   0
      driver-tx-packet:      345 282
                                   0
              rx-bytes:  233 636 763
                                   0
             rx-packet:    1 855 018
                                   0
          rx-too-short:            0
                                   0
           rx-too-long:            0
                                   0
              rx-pause:            0
                                   0
          rx-fcs-error:            0
                                   0
           rx-overflow:            0
                                   0
              tx-bytes:   47 433 203
                                   0
             tx-packet:      345 282
                                   0
    tx-total-collision:            0
                                   0

Setup Examples

Make sure you have added all needed interfaces to the VLAN table when using secure vlan-mode. For routing functions to work properly on the same device through ports that use secure vlan-mode, you will need to allow access to the CPU from those ports, this can be done by adding the switchX-cpu interface itself to the VLAN table. Examples can be found at the Management port section.

It is possible to use the built-in switch chip and the CPU at the same time to create a Switch-Router setup, where a device acts as a switch and as a router at the same time. You can find a configuration example in the Switch-Router guide.


When allowing access to the CPU, you are allowing access from a certain port to the actual router/switch, this is not always desirable. Make sure you implement proper firewall filter rules to secure your device when access to the CPU is allowed from a certain VLAN ID and port, use firewall filter rules to allow access to only certain services.

VLAN Example 1 (Trunk and Access Ports)

RouterBOARDs with Atheros switch chips can be used for 802.1Q Trunking. This feature in RouterOS v6 is supported by QCA8337, Atheros8316, Atheros8327, Atheros8227 and Atheros7240 switch chips. In this example ether3, ether4 and ether5 interfaces are access ports, while ether2 is a trunk port. VLAN IDs for each access port: ether3 - 200, ether4 - 300, ether5 - 400.

Switch together the required ports:

/interface bridge
add name=bridge1
/interface bridge port
add bridge=bridge1 interface=ether2 hw=yes
add bridge=bridge1 interface=ether3 hw=yes
add bridge=bridge1 interface=ether4 hw=yes
add bridge=bridge1 interface=ether5 hw=yes

By default, the bridge interface is configured with protocol-mode set to rstp. For some devices, this can disable hardware offloading because specific switch chips do not support this feature. See the Bridge Hardware Offloading section with supported features.

Add VLAN table entries to allow frames with specific VLAN IDs between ports:

/interface ethernet switch vlan
add ports=ether2,ether3 switch=switch1 vlan-id=200
add ports=ether2,ether4 switch=switch1 vlan-id=300
add ports=ether2,ether5 switch=switch1 vlan-id=400

Assign vlan-mode and vlan-header mode for each port and also default-vlan-id on ingress for each access port:

/interface ethernet switch port
set ether2 vlan-mode=secure vlan-header=add-if-missing
set ether3 vlan-mode=secure vlan-header=always-strip default-vlan-id=200
set ether4 vlan-mode=secure vlan-header=always-strip default-vlan-id=300
set ether5 vlan-mode=secure vlan-header=always-strip default-vlan-id=400
  • Setting vlan-mode=secure ensures strict use of VLAN table.
  • Setting vlan-header=always-strip for access ports removes VLAN header from frame when it leaves the switch chip.
  • Setting vlan-header=add-if-missing for trunk port adds VLAN header to untagged frames.
  • default-vlan-id specifies what VLAN ID is added for untagged ingress traffic of the access port.
For devices with QCA8337 and Atheros8327 switch chips a default vlan-header=leave-as-is should be used. When vlan-mode=secure is configured, it ignore switch port vlan-header options. VLAN table entries handle all the egress tagging/untagging and works as vlan-header=leave-as-is on all ports. It means what comes in tagged, goes out tagged as well, only default-vlan-id frames are untagged at the egress of port.


VLAN Example 2 (Trunk and Hybrid Ports)

VLAN Hybrid ports which can forward both tagged and untagged traffic. This configuration is supported only by some Gigabit switch chips (QCA8337, Atheros8327).

Switch together the required ports:

/interface bridge
add name=bridge1
/interface bridge port
add bridge=bridge1 interface=ether2 hw=yes
add bridge=bridge1 interface=ether3 hw=yes
add bridge=bridge1 interface=ether4 hw=yes
add bridge=bridge1 interface=ether5 hw=yes

By default, the bridge interface is configured with protocol-mode set to rstp. For some devices, this can disable hardware offloading because specific switch chips do not support this feature. See the Bridge Hardware Offloading section with supported features.

Add VLAN table entries to allow frames with specific VLAN IDs between ports.

/interface ethernet switch vlan
add ports=ether2,ether3,ether4,ether5 switch=switch1 vlan-id=200
add ports=ether2,ether3,ether4,ether5 switch=switch1 vlan-id=300
add ports=ether2,ether3,ether4,ether5 switch=switch1 vlan-id=400

In switch port menu set vlan-mode on all ports and also default-vlan-id on planned hybrid ports:

/interface ethernet switch port
set ether2 vlan-mode=secure vlan-header=leave-as-is
set ether3 vlan-mode=secure vlan-header=leave-as-is default-vlan-id=200
set ether4 vlan-mode=secure vlan-header=leave-as-is default-vlan-id=300
set ether5 vlan-mode=secure vlan-header=leave-as-is default-vlan-id=400
  • vlan-mode=secure will ensure strict use of VLAN table.
  • default-vlan-id will define VLAN for untagged ingress traffic on port.
  • In QCA8337 and Atheros8327 chips when vlan-mode=secure is used, it ignores switch port vlan-header options. VLAN table entries handle all the egress tagging/untagging and works as vlan-header=leave-as-is on all ports. It means what comes in tagged, goes out tagged as well, only default-vlan-id frames are untagged at the egress port.

Management access configuration

In these examples there will be shown examples for multiple scenarios, but each of these scenarios require you to have switched ports. Below you can find how to switch multiple ports:

/interface bridge
add name=bridge1
/interface bridge port
add interface=ether1 bridge=bridge1 hw=yes
add interface=ether2 bridge=bridge1 hw=yes


By default, the bridge interface is configured with protocol-mode set to rstp. For some devices, this can disable hardware offloading because specific switch chips do not support this feature. See the Bridge Hardware Offloading section with supported features.

In these examples it will be assumed that ether1 is the trunk port and ether2 is the access port, for configuration as the following:

/interface ethernet switch port
set ether1 vlan-header=add-if-missing
set ether2 default-vlan-id=100 vlan-header=always-strip
/interface ethernet switch vlan
add ports=ether1,ether2,switch1-cpu switch=switch1 vlan-id=100

Tagged

In order to make the device accessible only from a certain VLAN, you need to create a new VLAN interface on the bridge interface and assign an IP address to it:

/interface vlan
add name=MGMT vlan-id=99 interface=bridge1
/ip address
add address=192.168.99.1/24 interface=MGMT

Specify from which interfaces it is allowed to access the device:

/interface ethernet switch vlan
add ports=ether1,switch1-cpu switch=switch1 vlan-id=99


Only specify trunk ports in this VLAN table entry, it is not possible to allow access to the CPU with tagged traffic through an access port since the access port will tag all ingress traffic with the specified default-vlan-id value.

When VLAN table is configured, you can enable vlan-mode=secure to limit access to the CPU:

/interface ethernet switch port
set ether1 vlan-header=add-if-missing vlan-mode=secure
set ether2 default-vlan-id=100 vlan-header=always-strip vlan-mode=secure
set switch1-cpu vlan-header=leave-as-is vlan-mode=secure

Untagged

In order to make the device accessible from the access port, create a VLAN interface with the same VLAN ID as set in default-vlan-id, for example VLAN 100, and add an IP address to it:

/interface vlan
add name=VLAN100 vlan-id=100 interface=bridge1
/ip address
add address=192.168.100.1/24 interface=VLAN100

Specify which access (untagged) ports are allowed to access the CPU:

/interface ethernet switch vlan
add ports=ether1,ether2,switch1-cpu switch=switch1 vlan-id=100

Most commonly an access (untagged) port is accompanied with a trunk (tagged) port. In case of untagged access to the CPU, you are forced to specify both the access port and the trunk port, this gives access to the CPU from the trunk port as well. Not always this is desired and Firewall might be required on top of VLAN filtering.

When VLAN table is configured, you can enable vlan-mode=secure to limit access to the CPU:

/interface ethernet switch port
set ether1 vlan-header=add-if-missing vlan-mode=secure
set ether2 default-vlan-id=100 vlan-header=always-strip vlan-mode=secure
set switch1-cpu vlan-header=leave-as-is vlan-mode=secure


To setup management port using untagged traffic on a device with the Atheros7240 switch chip, you will need to set vlan-header=add-if-missing for the CPU port.

Untagged from tagged port

It is possible to allow access to the device from the trunk (tagged) port with untagged traffic. To do so, assign an IP address on the bridge interface:

/ip address
add address=10.0.0.1/24 interface=bridge1

Specify which ports are allowed to access the CPU. Use vlan-id that is used in default-vlan-id for switch-cpu and trunk ports, by default it is set to 0 or 1.

/interface ethernet switch vlan
add ports=ether1,switch1-cpu switch=switch1 vlan-id=1

When VLAN table is configured, you can enable vlan-mode=secure to limit access to the CPU:

/interface ethernet switch port
set ether1 default-vlan-id=1 vlan-header=add-if-missing vlan-mode=secure
set switch1-cpu default-vlan-id=1 vlan-header=leave-as-is vlan-mode=secure


This configuration example is not possible for devices with the Atheros8316 and Atheros7240 switch chips. For devices with QCA8337 and Atheros8327 switch chips it is possible to use any other default-vlan-id as long as it stays the same on switch-cpu and trunk ports. For devices with Atheros8227 switch chip only default-vlan-id=0 can be used and trunk port must use vlan-header=leave-as-is.

See also




  • No labels
