ROSE (RouterOS Enterprise) package adds data center functionality to RouterOS - for supporting disk monitoring, improved formatting, RAIDs, rsync, iSCSI ,NVMe over TCP, NFS. This functionality currently is supported on arm, arm64, x86 and tile platforms.

Storage Type

Crypted

Drive or device used together with type=crypted to make "dm_crypt" encrypted storage. dm-crypt is a transparent disk encryption subsystem designed to provide encryption of block devices.

Properties

Property	Description
slot (string; Default: )	Name of the file system
encryption-key (string; Default: )	key used to decrypt
crypted-backend (string; Default: )	Drive or partition to encrypt

Example: Simple crypted file system

To create a crypted file-system:

add crypted-backend=usb1 encryption-key=<secret_key> slot=crypted-usb1 type=crypted

After it's created format the file system and it's ready to go.

disk format-drive crypted-usb1 file-system=ext4

Example: Crypted RAID1 array with integrity check

Create a RAID1 array and create a crypted-file system on top of it:

/disk
add raid-device-count=2 raid-type=1 slot=raid1 type=raid
set nvme3 raid-master=raid1 raid-role=0
set nvme4 raid-master=raid1 raid-role=1
add crypted-backend=raid1 encryption-key=<secret_key> slot=crypted-raid1 type=crypted  crypt-mode=encryption-and-integrity

Format the crypted file-system to Btrfs:

/disk
 format-drive crypted-raid1 file-system=btrfs

iSCSI

iSCSI allows accessing storage over an IP-based network. On initiator iSCSI device will appear as block device. RouterOS supports both target and initiator modes.

Properties

Property	Description
iscasi-address	IP address of the iSCSI target. (Host device IP)
iscasi-export	Disables/enables iSCASI on the host device
iscasi-iqn	unique identifier used to name iSCSI target. (In ROS the iqn is the same as slot name, can't be changed and needs to be configured only on the client device)
iscasi-port	network port used by the iSCSI target to listen for incoming connections from initiators. The default port for iSCSI traffic is 3260.

Configuration example

Host

/disk
set pcie1-nvme1 iscsi-export=yes

Client

/disk
add type=iscsi iscsi-address=192.168.1.1 iscsi-iqn=pcie1-nvme1

NFS

NFS allows sharing local directories over network. RouterOS currently supports NFS v4 only mode.

NFS uses port TCP/2049. If the port is not available in disk print detail you will see the state stuck at nfs-state="mounting"

Properties

Property	Description
nfs-address	IP address of the NFS target. (host device IP)
nfs-share	Specify the folder to mount (client parameter)
nfs-sharing	Disable/enable NFS on the host device

Configuration example

Host

/disk
set pcie1-nvme1 nfs-sharing=yes

Client

/disk
add type=nfs nfs-address=192.168.1.1

Linux client

mkdir /mnt/files
mount -t nfs 192.168.1.1:/ /mnt/files

NVME over TCP

nvme-tcp allows accessing storage over network as NVMe block device on initiator side. On target side this device can be hdd/ssd/nvme or even raid array.

Properties

Property	Description
nvme-tcp-address	IP address of the NVME over TCP target. (host device IP)
nvme-tcp-export	Disable/enable NVME over TCP on the host device
nvme-tcp-host-name	This property specifies the hostname of the NVMe over TCP initiator. It can be used for identification and authentication purposes
nvme-tcp-name	This property specifies the name of the NVMe over TCP target or the connection name for reference purposes (needs to be the same as host slot name)
nvme-tcp-password	his property is used to specify the password for authenticating the NVMe over TCP connection, ensuring secure access.
nvme-tcp-port	This property specifies the network port used by the NVMe over TCP target to listen for incoming connections from initiators. The default port for NVMe over TCP traffic is 4420.
nvme-tcp-server-allow-host-name	This property specifies whether the NVMe over TCP server allows connections from specific hostnames, providing a mechanism for host-based access control.
nvme-tcp-server-password	This property specifies the password for the NVMe over TCP server, used for authenticating initiators connecting to the target.
nvme-tcp-server-port	This property specifies the network port used by the NVMe over TCP server to accept connections from initiators.

Example: Mount a disk

In this example, one RouterOS device is used as a storage server ( Host ) and another RouterOS device requires a storage device to be mounted over the network ( Client ).

Use the following commands on Host :

/disk set disk1 nvme-tcp-export=yes nvme-tcp-port=4420

Use the following commands on Client :

/disk add type=nvme-tcp nvme-tcp-address=192.168.1.1 nvme-tcp-name=disk1

Your Client will now see a disk that is actually mounted over network using NVMe-Over-TCP

Linux Client

Use these commands to setup NVM-Over-TCP on a Linux Client .

Load kernel module
```
modprobe nvme_tcp
```

Discover existing NVMe-Over-TCP mounts:

nvme discover -t tcp -a 192.168.1.1 -s 4420

#OUTPUT:
Discovery Log Number of Records 1, Generation counter 2
=====Discovery Log Entry 0======
trtype:  tcp
adrfam:  ipv4
subtype: nvme subsystem
treq:    not specified, sq flow control disable supported
portid:  4420
trsvcid: 4420
subnqn:  disk1
traddr:  10.155.166.7
sectype: none

Connect to the NVMe-Over-TCP mount:

nvme connect -t tcp -a 192.168.1.1 -s 4420 -n disk1

Block devices now should be available:

ls /dev/nvme*

#OUTPUT:
/dev/nvme0  /dev/nvme0n1  /dev/nvme-fabrics

You can now use the mounted block device as any other block device on your Linux Client .

In case you want to disconnect the mounted block device:

nvme disconnect -d /dev/nvme0

Example: Mount a file as a block device

In this example, one RouterOS device is used as a storage server ( Host ) and another RouterOS device requires a storage device to be mounted over the network ( Client ).

Such a setup is useful when you don't want to delegate the whole disk to a Client , but rather give a fraction of the disk size to the Client . Mounting a file rather a disk is going to have a lower performance than mounting a disk (or partition) using NVMe-Over-TCP.

Use the following commands on Host to create a file that is going to be used as a block device:

/disk add type=file file-path=disk1/BIGFILE.img file-size=10G slot=blockdevice1
/disk set blockdevice1 nvme-tcp-export=yes

Use the following commands on Client to mount the file as a block device:

/disk nvme-discover 192.168.1.1
/disk add nvme-tcp-address=192.168.1.1 nvme-tcp-name=blockdevice1 type=nvme-tcp
/disk format-drive blockdevice1 file-system=ext4

Your Client will now see a new disk called blockdevice1 even though on the Server the storage device is actually a file.

In case you want to mount the block device on a Linux Client , then check the LinuxClient section.

Example: Mount a RAID array

In this example, one RouterOS device is used as a storage server ( Host ) and another RouterOS device requires a storage device to be mounted over the network ( Client ), but also provides data redundancy.

Setup a RAID on the Host , for example:

/disk add raid-device-count=8 raid-type=6 slot=RAID6_array type=raid
/disk set disk1 raid-master=RAID6_array raid-role=0
/disk set disk2 raid-master=RAID6_array raid-role=1
/disk set disk3 raid-master=RAID6_array raid-role=2
/disk set disk4 raid-master=RAID6_array raid-role=3
/disk set disk5 raid-master=RAID6_array raid-role=4
/disk set disk6 raid-master=RAID6_array raid-role=5
/disk set disk7 raid-master=RAID6_array raid-role=6
/disk set disk8 raid-master=RAID6_array raid-role=7
/disk set RAID6_array nvme-tcp-export=yes

Use the following commands on Client :
Your Client will now see a single disk, but it is actually a highly redundant RAID array.

In case you want to mount the block device on a Linux Client , then check the LinuxClient section.

Ramdisk

RAMdisk - allows using part of RAM as attached device (block device). If compared to tmpfs - this allows using RAM as part of raid, or any other configuration where device instead of folder is required.

RAMdisk will be cleared on reboot or power loss

Properties

Property	Description
ramdisk-size	Size of the block device you want to create

Configuration example

/disk add type=ramdisk ramdisk-size=500M

To start using the created ramdisk, you must first format it.

/disk format-drive ramdisk1

SMB

SMB is a popular file-sharing protocol. ROSE package currently supports SMB2.1 SMB3.0, SMB3.1.1 dialects (SMB1 is not supported due to security vulnerabilities)

Properties

Property	Description
smb-address	IP address of the SMB server
smb-password	SMB password
smb-share	Name of the share you want to connect to
smb-user	SMB user

Configuration example

Client

add smb-address=10.155.145.11 smb-share=share1 smb-user=user smb-password=password type=smb

Server-side configuration can be found - SMB

Tmpfs

TMPFS - allows using part of RAM as filesystem (can't be used as block device)

Tmpfs will be cleared on reboot or power loss

Properties

Property	Description
tmpfs-max-size	Size of the block device you want to create

Configuration example

add type=tmpfs tmpfs-max-size=10G

RAID

RAID (Redundant Array of Independent Disks) technology allows storing data on multiple drives - improving data transfer performance, data protection or both by combining them into logical units.

RouterOS supports software RAID levels 0,1,4,5,6,linear and nested RAID.

Properties

Property	Description
raid-type	RAID type used (levels 0,1,4,5,6,linear and nested RAID.)
raid-chunk-size	The size of the chunks or stripes used in the RAID array.
raid-device-count	The number of devices (disks) included in the RAID array.
raid-master	Created RAID master block device the disks are added to.
raid-max-component-size	The maximum size of an individual component or disk in the RAID array.
raid-member-failed	Sets the drive in a failed state in RAID array. Used if there is a need to change a non-failed drive
raid-role	Defines the role of each device within the RAID array.

Configuration example (RAID6):

This is an example on how to configure RAID, it will be the same procedure in most of RAID types

Create the RAID block device (In this example, RAID 6)

add raid-device-count=20 raid-type=6 slot=raid1 type=raid

Add drives to this raid

set nvme1 raid-master=raid1 raid-role=0
set nvme2 raid-master=raid1 raid-role=1
set nvme3 raid-master=raid1 raid-role=2
set nvme4 raid-master=raid1 raid-role=3
set nvme5 raid-master=raid1 raid-role=4
set nvme6 raid-master=raid1 raid-role=5
set nvme7 raid-master=raid1 raid-role=6
set nvme8 raid-master=raid1 raid-role=7
set nvme9 raid-master=raid1 raid-role=8
set nvme10 raid-master=raid1 raid-role=9
set nvme11 raid-master=raid1 raid-role=10
set nvme12 raid-master=raid1 raid-role=11
set nvme13 raid-master=raid1 raid-role=12
set nvme14 raid-master=raid1 raid-role=13
set nvme15 raid-master=raid1 raid-role=14
set nvme16 raid-master=raid1 raid-role=15
set nvme17 raid-master=raid1 raid-role=16
set nvme18 raid-master=raid1 raid-role=17
set nvme19 raid-master=raid1 raid-role=18
set nvme20 raid-master=raid1 raid-role=19

Format the RAID block device

disk> format-drive raid1 file-system=ext4

And the result should look similar to this

21 BM        type=raid slot="raid1" slot-default="" parent=none uuid="f457bc79-7408-489b-8850-85923e900452" fs=ext4 model="RAID6 2-parity-disks"
             size=17 283 541 893 120 free=17 283 538 190 336 raid-type=6 raid-device-count=20 raid-max-component-size=none raid-chunk-size=1M raid-master=none
             raid-state="clean" nvme-tcp-export=no iscsi-export=no nfs-sharing=no smb-sharing=no media-sharing=no media-interface=none

Example: RAID check

It is extremely important to monitor your RAID array for failures. There are multiple ways to do it, but the simplest way is to create a script that sends an e-mail whenever a RAID member has failed. You can use the following script as an working example:

/system scheduler
add name=test_raid on-event=mdadmcheck policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon start-time=startup
/system script
add dont-require-permissions=no name=mdadmcheck owner=admin policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source=":global CheckRAID;\
    \n\
    \n:local temp [/disk print count-only where raid-member-failed];\
    \n:if ( \$temp > 0 ) do={\
    \n        :if ( \$CheckRAID < 1 ) do={\
    \n               /log info message=\"ERROR: RAID has failed!\";\
    \n               /tool e-mail send to=sysadmin@domain.com subject=([/system identity get name].\" RAID failed\") body=(\"Go check it! Value: \".\$temp);\
    \n              :set \$CheckRAID 7;\
    \n              :delay 5s;\
    \n             }\
    \n      }       \
    \n     :if ( \$CheckRAID > 0 ) do={\
    \n          :set \$CheckRAID ( \$CheckRAID -1 );\
    \n      }\
    \n"

You will also need to configure your RouterOS device's e-mail server settings:

/tool e-mail
set from=<raidcheck@domain.com> port=587 server=smtp.domain.com tls=starttls

Make sure you configure your e-mail server's settings under /tool e-mail and change the e-mail address in the script above with the values that matches your e-mail server's settings.

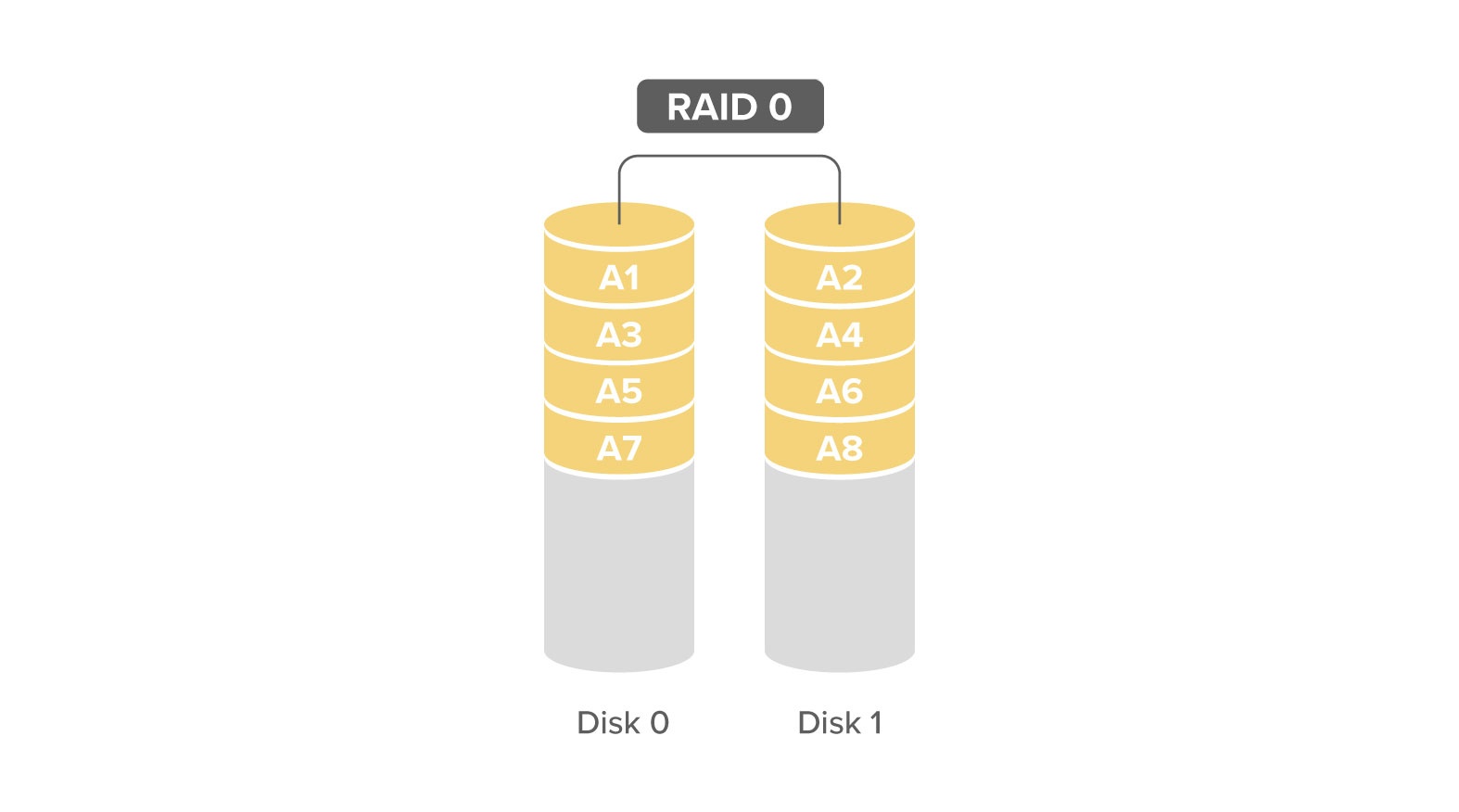

RAID 0

All data is written evenly over all disks in this RAID, this configuration does not provide any fault tolerance but provides best performance.

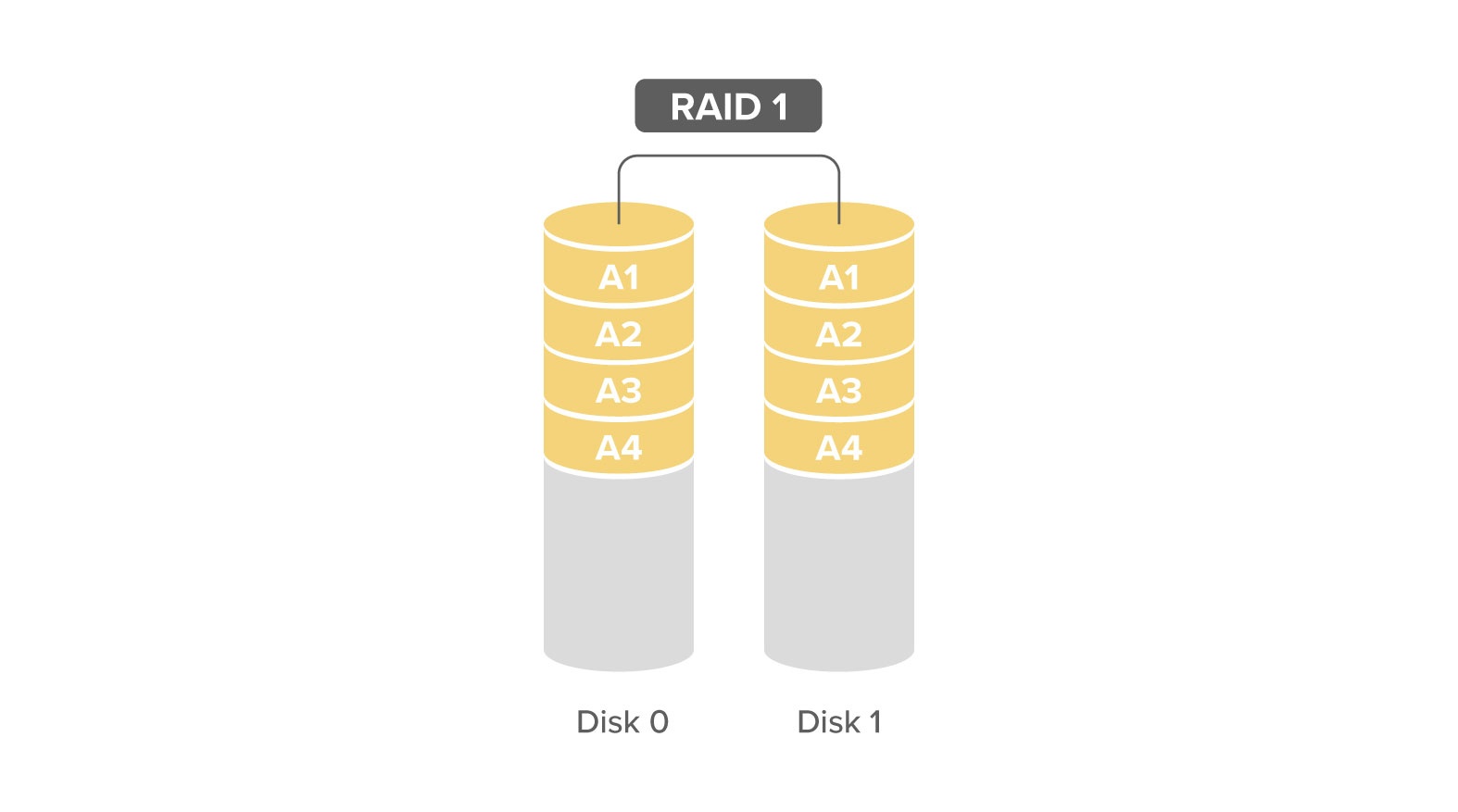

RAID 1

Same data is written in all drives (data is mirrored), this configuration provides best fault tolerance, but performance wise write speeds will be equal to slowest disk used in array.

RAID 4

Block-level data is striped to a dedicated disk where parity bits are stored. Performance will be limited to a parity writing speed.

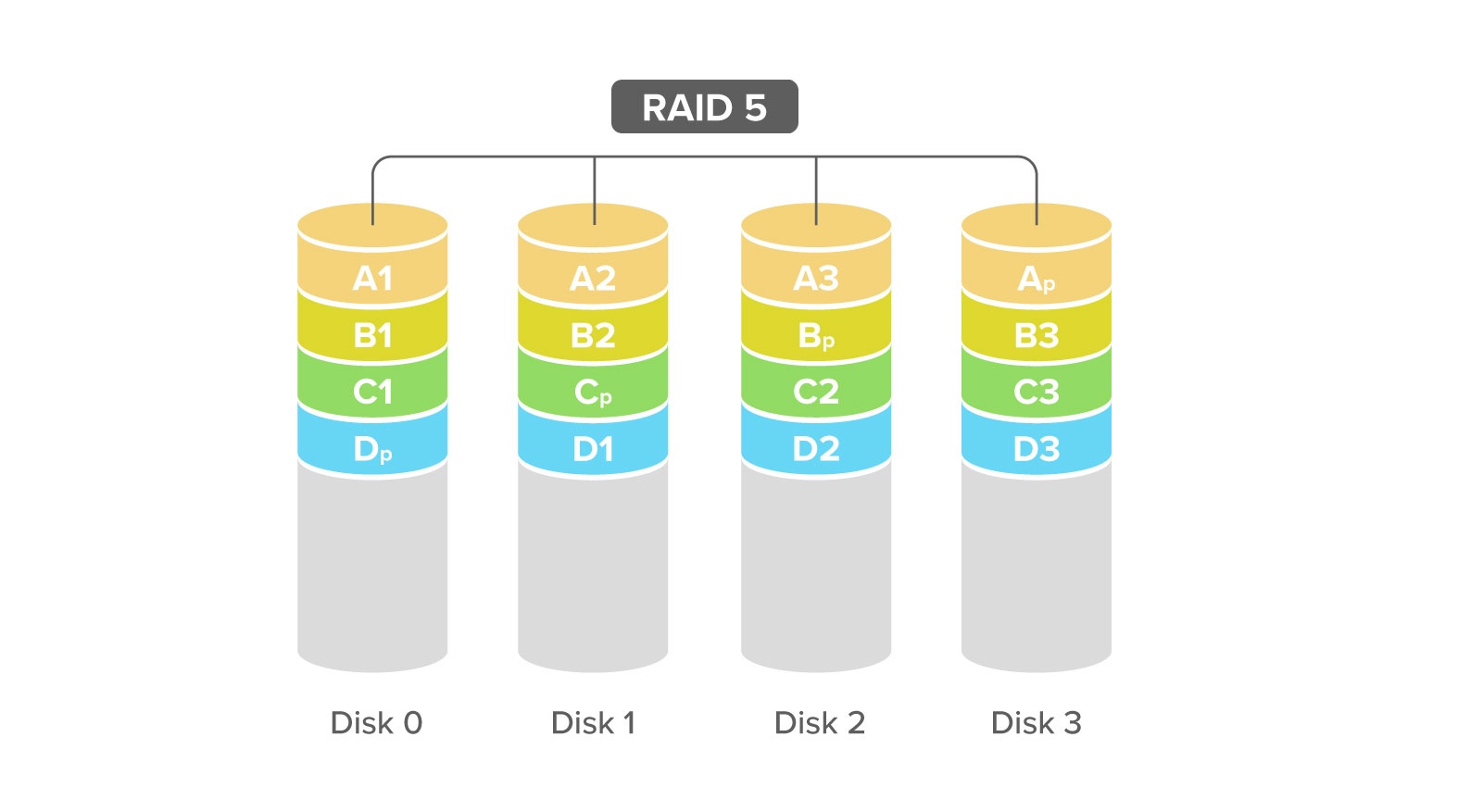

RAID 5

Block-level data is striped evenly over the available disks. Can be recovered from 1 disk failure.

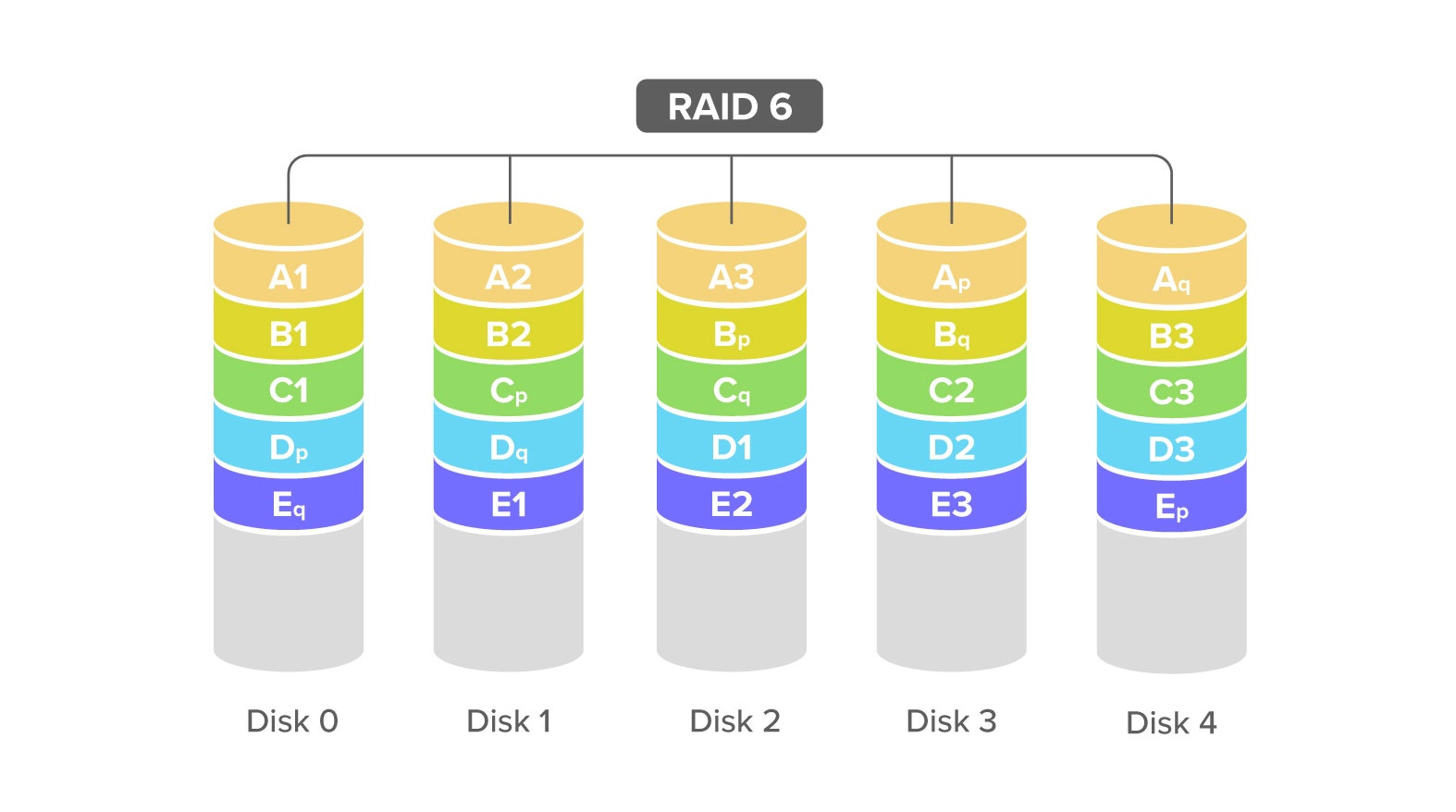

RAID 6

Block-level data is striped evenly over the available disks. Can be recovered from 2 disk failures.

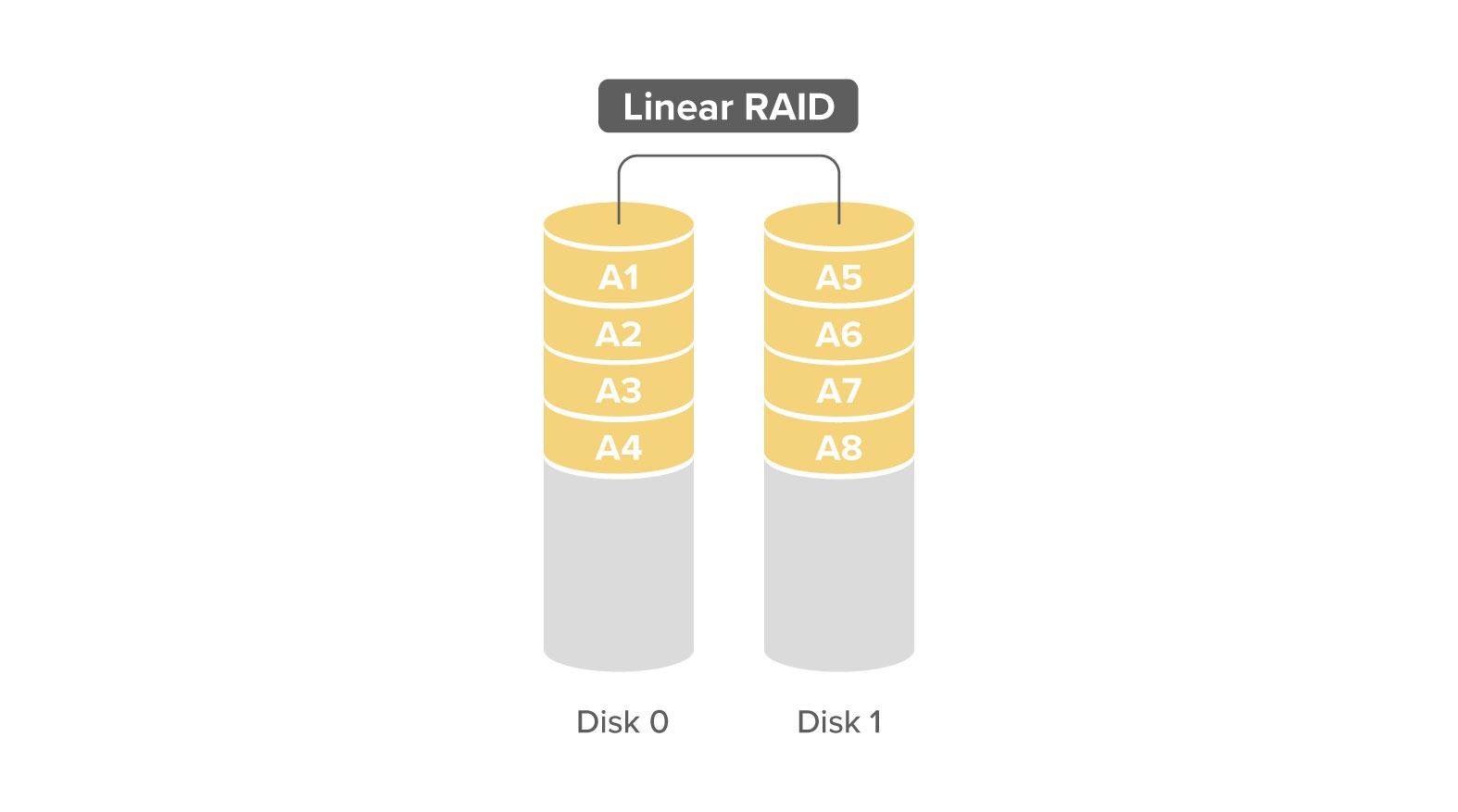

RAID Linear

Data is appended over multiple disks combining them into single large disk. Provides no redundancy and is limited to single disk read/write speed.

Nested RAID

Combination of multiple RAID configurations into other RAID. For example RAID 10 (RAID 1+0) combines disk mirroring (RAID 1) and disk striping (RAID 0)

Configuration example

In this example I'm using 20 SSD drives and configuring in RAID (RAID 1+0)

Create a RAID 1 block

add raid-device-count=2 raid-type=1 slot=raid10 type=raid

Crete two RAID 0 blocks and add them to set the master-raid the previously created RAID 1 block (name=raid10)

add raid-device-count=10 raid-master=raid10 raid-role=0 raid-type=0 slot=raid0 type=raid
add raid-device-count=10 raid-master=raid10 raid-role=1 raid-type=0 slot=raid1 type=raid

Add drives to each RAID block

set nvme1 raid-master=raid1 raid-role=0
set nvme2 raid-master=raid1 raid-role=1
set nvme3 raid-master=raid1 raid-role=2
set nvme4 raid-master=raid1 raid-role=3
set nvme5 raid-master=raid1 raid-role=4
set nvme6 raid-master=raid1 raid-role=5
set nvme7 raid-master=raid1 raid-role=6
set nvme8 raid-master=raid1 raid-role=7
set nvme9 raid-master=raid1 raid-role=8
set nvme10 raid-master=raid1 raid-role=9

set nvme11 raid-master=raid0 raid-role=0
set nvme12 raid-master=raid0 raid-role=1
set nvme13 raid-master=raid0 raid-role=2
set nvme14 raid-master=raid0 raid-role=3
set nvme15 raid-master=raid0 raid-role=4
set nvme16 raid-master=raid0 raid-role=5
set nvme17 raid-master=raid0 raid-role=6
set nvme18 raid-master=raid0 raid-role=7
set nvme19 raid-master=raid0 raid-role=8
set nvme20 raid-master=raid0 raid-role=9

After this format, the raid10 block

format-drive raid10 file-system=ext4

After formating you should see the free space and use the block

23 BM        type=raid slot="raid10" slot-default="" parent=none uuid="ec3344f4-1662-49ab-b899-db1aaa217b0f" fs=ext4 model="RAID1 mirrored" size=9 601 967 652 864
             free=9 597 901 369 344 raid-type=1 raid-device-count=2 raid-max-component-size=none raid-master=none raid-state="clean" nvme-tcp-export=no
             iscsi-export=no nfs-sharing=no smb-sharing=no media-sharing=no media-interface=none

RSYNC

rsync (Remote Sync) is a powerful file synchronization and file transfer program used in Unix-based systems. It allows for efficient transfer and synchronization of files and directories between different systems or within the same system.
If you make changes in a file only changes to files are transferred, reducing data transfer volume. RouterOS RSYNC implementation uses ipsec for data transfer (if password is set). When configured you will see dynamic ipsec entries.

Rsync settings can be found in file/sync menu

Port TCP/8291 is used for the control connection (if not open in the status (file sync print) you will be stuck at making control connection to 192.168.88.2)

Port UDP/500 and protocol 50 (ipsec-esp) is used to create a secure connection and start the transfer (if not open in the status (file sync print) you will be stuck at initializing transfer)

IPSec dynamic entry example:

#     PEER                     TUNNEL  SRC-ADDRESS       DST-ADDRESS       PROTOCOL  ACTION   LEVEL    PH2-COUNT
;;; file-sync-10.155.145.11
1  D  file-sync-10.155.145.11  no      10.155.145.17/32  10.155.145.11/32  tcp       encrypt  require          1

/ip/ipsec/peer> print
 0  D  name="file-sync-10.155.145.11" address=10.155.145.11/32 local-address=10.155.145.17 profile=default exchange-mode=main send-initial-contact=yes
/ip/ipsec/identity> print
 0 D  ;;; file-sync-10.155.145.11
      peer=file-sync-10.155.145.11 auth-method=pre-shared-key secret="secret" generate-policy=no

Properties

Property	Description
local-path	File/folder path. Used for mode Upload to set the path of the file/folder to upload to the device
mode	Sets if you want to download/upload the file (direction of the sync)
password	Target device password
remote-address	Target devices IP
remote-path	File/folder path. Used with mode download to set the path of the target device to be downloaded
user	Target device password

Configuration example

Basic configuration is really easy, on the host device you need to add the file you want to sync to another device, the ip, user/password and the mode.

/file sync
add local-path=/ipv6route.txt.rsc mode=upload remote-address=192.168.88.2 remote-path=RAID/

If configured correctly, you will see on the host device:

0 192.168.88.2  upload  /ipv6route.txt.rsc  RAID/        in sync

And on the client device:

#   REMOTE-ADDRESS   MODE      LOCAL-PATH  REMOTE-PATH         STATUS
0 D 192.168.88.1 download  RAID/       /ipv6route.txt.rsc  in sync

Self-Encryption Drives

For using SED - drives have to be Opal-compliant. Please consult drive manufacturers documentation to find out if particular drive supports this feature before buying drives.
RouterOS adds o (supported inactive) or O (supported active) flags for supported drives:

/disk print
Flags: B - BLOCK-DEVICE; M, F - FORMATTING; o - TCG-OPAL-SELF-ENCRYPTION-SUPPORTED
Columns: SLOT, MODEL, SERIAL, INTERFACE, SIZE, FREE, FS, RAID-MASTER
#     SLOT   MODEL                  SERIAL           INTERFACE                   SIZE             FREE  FS    RAID
0 BMo sata1  Samsung SSD 860 2.5in  S3Z9NX0N414510L  SATA 6.0 Gbps  1 000 204 886 016  983 351 111 680  ext4  none
1 BMo sata2  Samsung SSD 860        S5GENG0N307602J  SATA 6.0 Gbps  1 000 204 886 016  983 351 128 064  ext4  none
2 BMO sata3  Samsung SSD 860        S5GENG0N307604H  SATA 6.0 Gbps  1 000 204 886 016  983 351 128 064  ext4  none
3 BMO sata4  Samsung SSD 860 2.5in  S4CSNX0N838150B  SATA 6.0 Gbps  1 000 204 886 016  983 351 128 064  ext4  none

To set TCG-OPAL-SELF-ENCRYPTION:

/disk
disk set sata1 self-encryption-password=securepassword

to unset:

/disk
disk unset sata1 self-encryption-password

or

/disk
disk set sata1 !self-encryption-password

Page tree

ROSE-storage

Storage Type

Crypted

Properties

Example: Simple crypted file system

Example: Crypted RAID1 array with integrity check

iSCSI

Properties

Configuration example

NFS

Properties

Configuration example

NVME over TCP

Properties

Example: Mount a disk

Linux Client

Example: Mount a file as a block device

Example: Mount a RAID array

Ramdisk

Properties

Configuration example

SMB

Properties

Configuration example

Tmpfs

Properties

Configuration example

RAID

Properties

Configuration example (RAID6):

Example: RAID check

RAID 0

RAID 1

RAID 4

RAID 5

RAID 6

RAID Linear

Nested RAID

Configuration example

RSYNC

Properties

Configuration example

Self-Encryption Drives
